LONG-HORIZON ROBOT LEARNING

RoboLongR: Causally Consistent Rewards Teach Robots to Progressively Master Long-Horizon Manipulation

Read the paper Watch video Explore the method

Abstract

Long-horizon manipulation requires actions whose validity depends on earlier interactions, yet visual progress can conceal missing task prerequisites. RoboLongR learns history-dependent rewards to guide policy adaptation to new tasks. Its central objective is causal consistency: aligning rewarded progress with prerequisites supported by execution history.

Stage-shuffle supervision encourages execution-order sensitivity, recurrent memory preserves earlier interaction evidence, and two-round training refines trajectory segments using predicted progress. The rewards guide stage-conditioned behavior cloning and online reinforcement learning. Sparse terminal feedback triggers reward correction for repeated high-scoring failures.

Pretrained on 88 RLBench tasks and Open-X data, RoboLongR achieves 31.8% success on 18 held-out tasks and 57.5% across four real-robot tasks. Reward-level controls probe synthetic order sensitivity, while ablations examine component contributions to policy improvement.

RoboLongR in action

Download video ↗

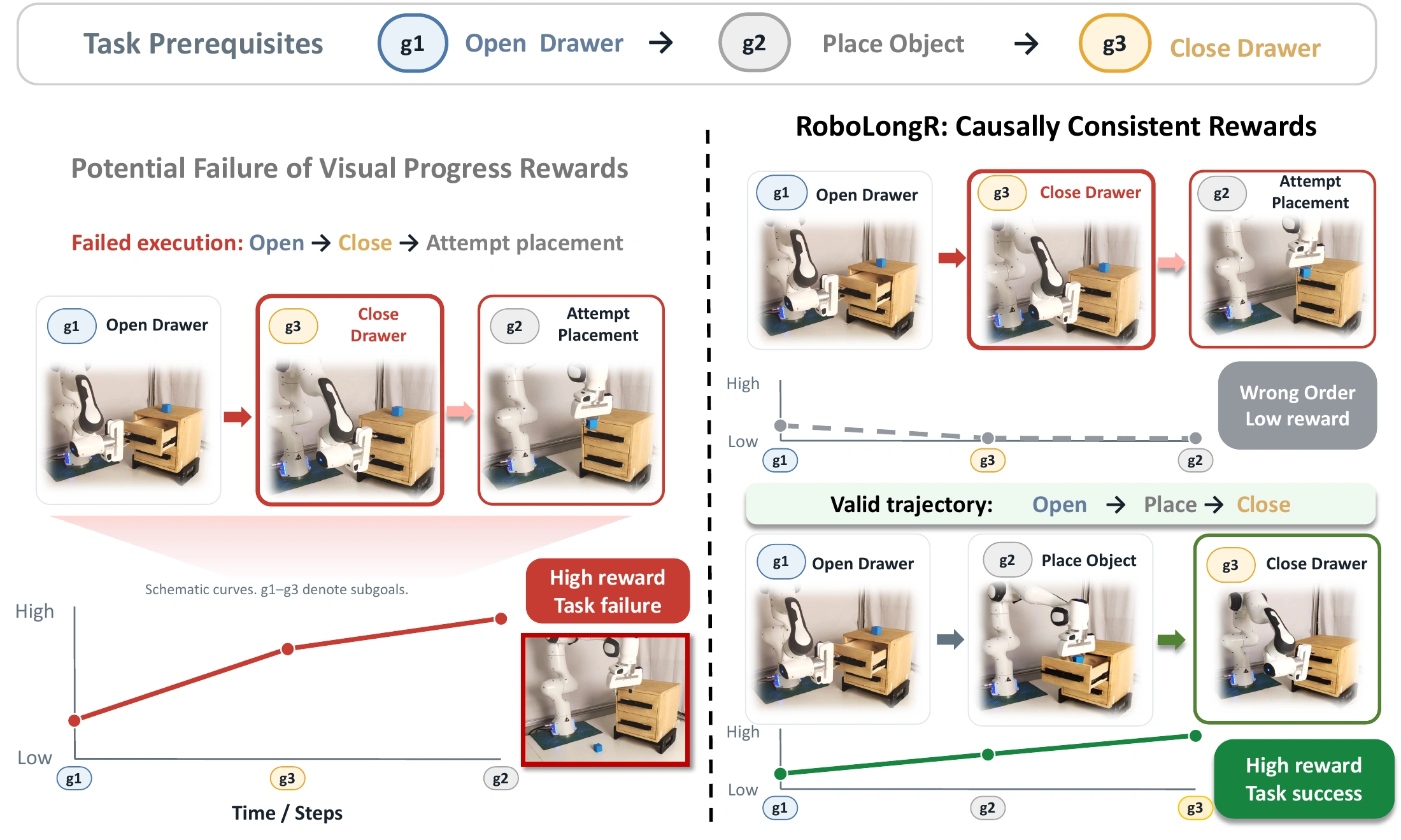

THE CENTRAL IDEAExecution history matters

Closing an empty drawer can resemble success. Reward learning should account for whether the object was placed inside. Schematic curves illustrate the intended behavior.

88RLBench pretraining tasks

31.8%Success on 18 held-out tasks+9.2 percentage points vs. ReWiND

57.5%Success across 4 real-robot tasks23 of 40 trials · ReWiND: 10 of 40

02 / THE METHOD

From demonstrations to better decisions.

Order supervision shapes the reward.
Interaction tests and refines it.

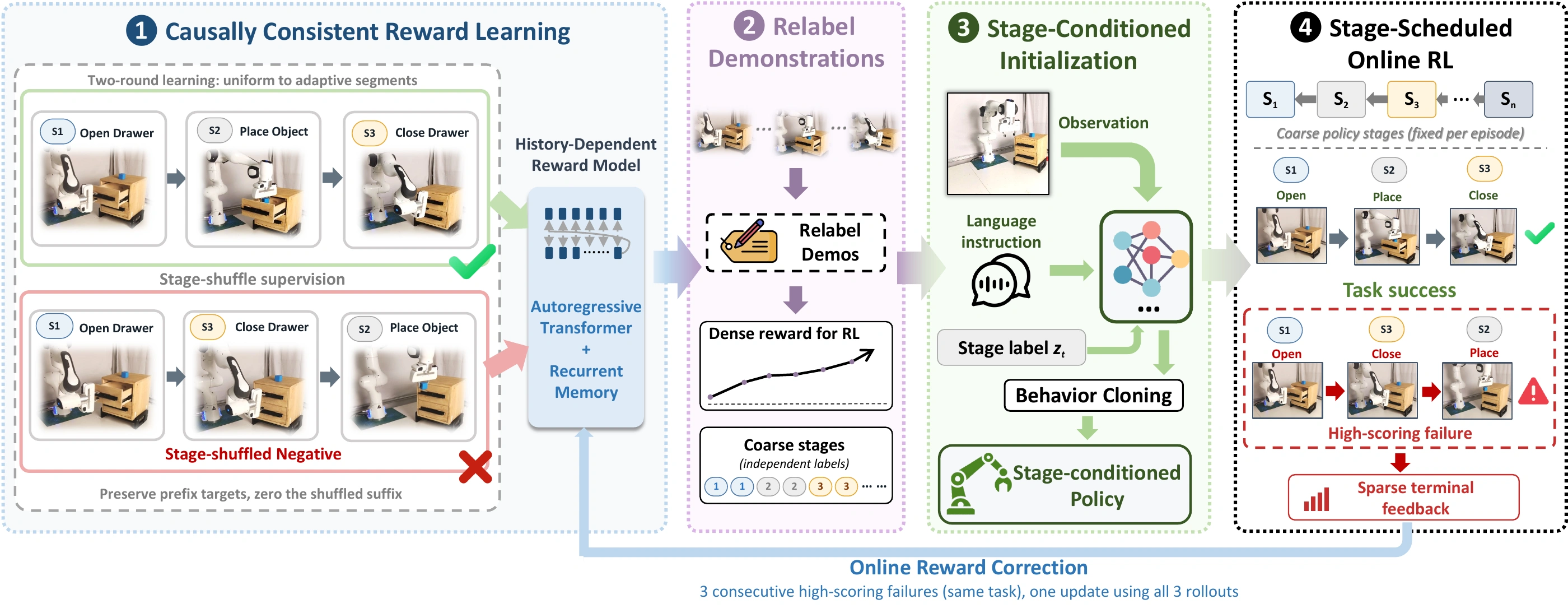

RoboLongR pipeline showing reward learning, demonstration relabeling, behavior cloning, online RL, and reward correction. — Adaptive segments supervise execution order; separate coarse labels condition BC and scheduled online RL. Offline progress scores are diagnostic annotations. RL queries rewards on online histories, and terminal feedback triggers correction after repeated high-scoring failures.

01
Supervise execution order
Reorder intact demonstration segments to create synthetic negatives. Order-preserving splices provide positive training examples and a held-out control, without exactly matching shuffle boundary statistics.
02
Remember prior observations
A recurrent reward model carries information across temporal windows. A second training round adapts segmentation to predicted progress.
03
Refine the policy
Initialize with stage-conditioned behavior cloning. Online PPO queries the reward on execution histories, while stage inputs remain fixed within each full-task episode. Evaluation uses stage 1.
04
Correct recurring failures
Three consecutive failures on the same task with peak reward above 0.65 trigger one reward update using all three rollouts, applied after the PPO update. Correction uses no offline replay.

What “causally consistent” means here

Rewarded progress should be compatible with task prerequisites supported by execution history. Stage-order supervision is a training proxy for this objective. It does not recover a causal graph or certify semantic prerequisite satisfaction.

03 / EXPERIMENTS

Evaluate the reward. Measure the whole task.

Controlled reward diagnostics and
downstream policy evaluation.

18 TASKS · 3 SEEDS

Higher complete-task success.

RoboLongR achieves 31.8% average success on long-horizon tasks excluded from reward pretraining, compared with 22.6% for ReWiND.

The reported gain is larger on strong-dependency tasks: 14.2 percentage points, versus 4.2 on weak-dependency tasks.

50 evaluation trials per task per seed. Target-task demonstrations initialize the policy, and target-task interaction supports online learning. This is not zero-shot policy evaluation. Differences are computed before rounding.

Average success (%)0–40

BC-only

7.8

Sparse-PPO

6.8

LIV

2.9

Progress+Mono

20.1

ReWiND

22.6

RoboLongR

31.8

HELD-OUT TRAJECTORIES

Sensitive to reordered execution.

RoboLongR separates demonstrations from synthetic order perturbations, with a larger reward margin and higher pairwise ranking accuracy.

The small margin on order-preserving splices argues against penalizing every splice. Unmatched boundary statistics remain a possible shortcut. These controls establish discrimination of the tested perturbations, not complete semantic prerequisite verification.

Reward-level controls
Metric	ReWiND	RoboLongR
Order-perturbation margin ↑	0.04	0.40
Ranking accuracy ↑	55.0%	90.0%
Rewound margin ↑	0.36	0.39
Splice margin (near 0)	0.03	0.05
Progress MSE ↓	0.021	0.023

180 correct–perturbed pairs per condition, based on ten additional held-out demonstrations per evaluation task. One final frozen pretraining checkpoint per method scores each condition. Margins average paired differences in mean trajectory reward; ranking ties count as incorrect. Progress MSE uses (t/T)² targets and averages per-trajectory errors.

COMPONENT ANALYSIS

Order supervision matters.

Removing stage-shuffle produces the largest observed drop in task success among the tested component ablations.

These comparisons assess each removal within the complete pipeline. The no-schedule control fixes stage 1 throughout PPO; its comparison with the full configuration combines initial-conditioning and scheduling effects, rather than isolating individual stage transitions.

Average success on RLBench
Configuration	Success	Change
RoboLongR	31.8%	—
Without stage-shuffle	24.3%	−7.5 pp
Without online correction	28.4%	−3.4 pp
Without recurrent memory	28.9%	−2.9 pp
Without stage schedule	29.8%	−2.0 pp

04 / ON THE REAL ROBOT

Four tasks. One complete-execution goal.

Tool use, assembly, multi-object manipulation,
and articulated-object interaction.

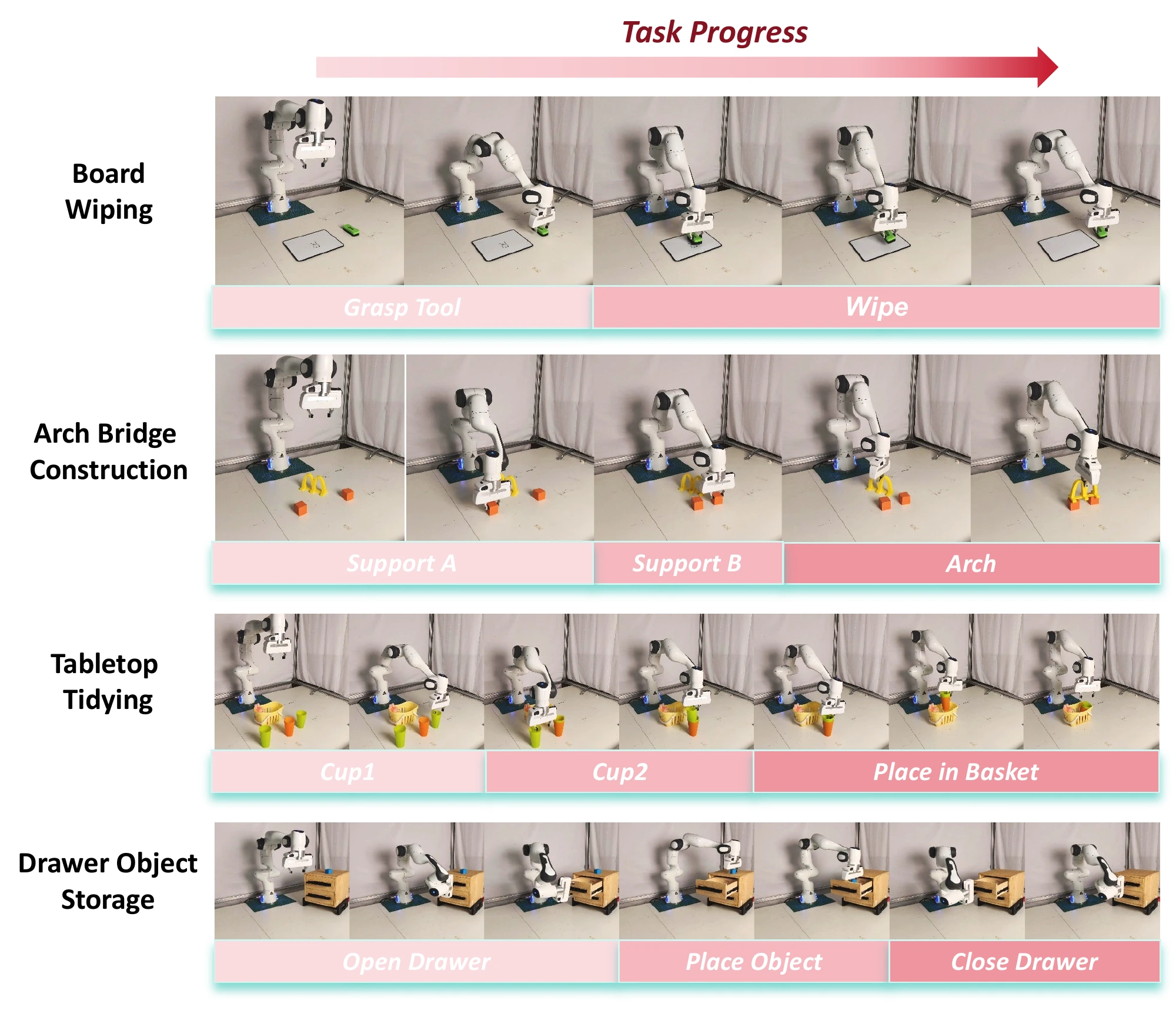

Photographs showing the four long-horizon tasks and their subtask sequences.

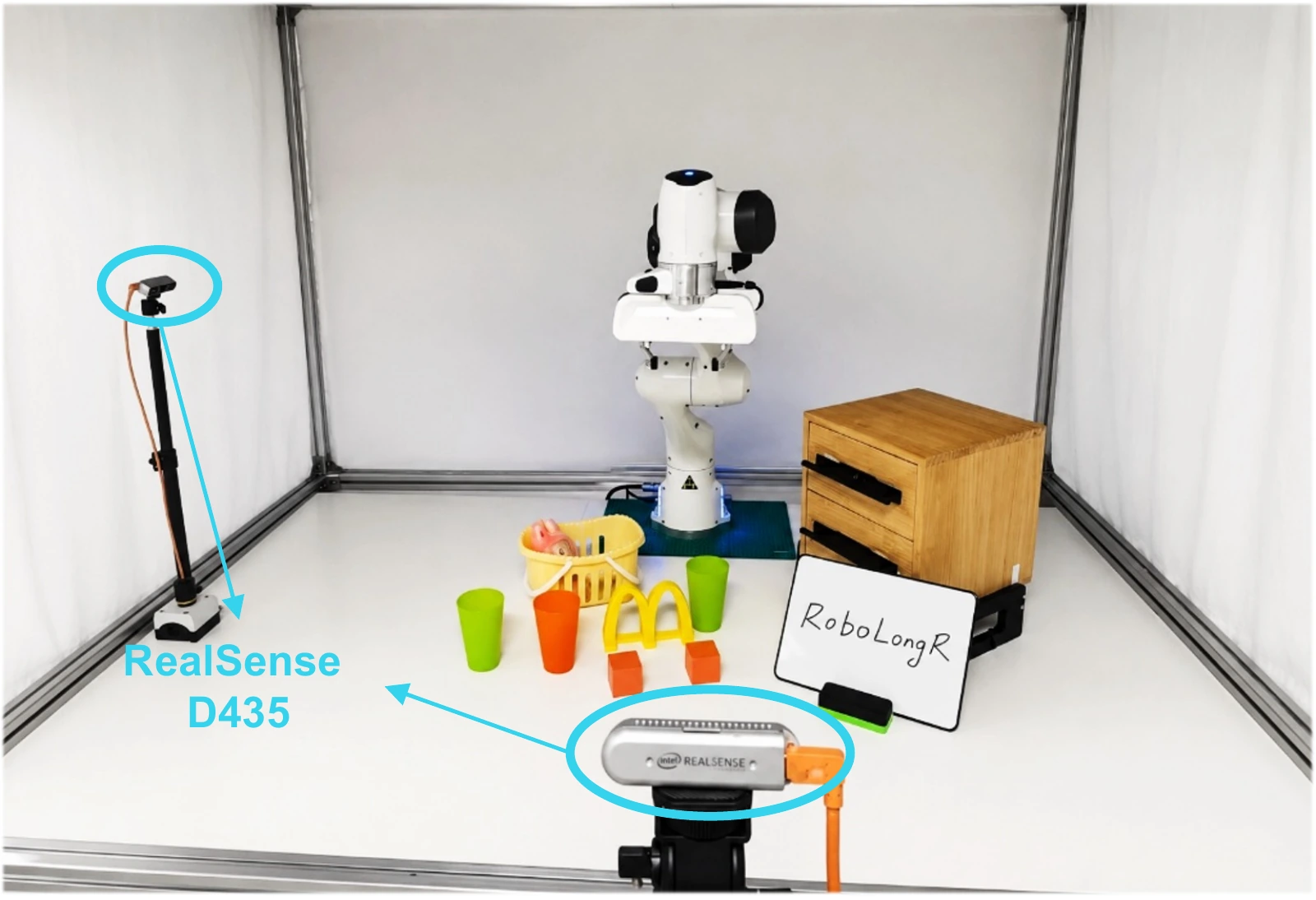

Franka Panda platform with front and right RealSense cameras.

Franka Panda
7 degrees of freedom
Two Intel RealSense D435 cameras
10 GELLO demonstrations per task

Observed success · 10 trials per task and method
Task	ReWiND	RoboLongR
Tabletop Tidying	2 / 10	5 / 10
Drawer Object Storage	2 / 10	7 / 10
Arch Bridge Construction	1 / 10	4 / 10
Board Wiping	5 / 10	7 / 10
Pooled success	25.0%	57.5%

Both methods use ten successful GELLO demonstrations per task for reward learning and BC, starting from their respective RLBench/Open-X checkpoints and retaining their original reward objectives. Each method is evaluated in ten trials per task with randomized placements. One annotator blind to the method judges complete-task success; failed trials are not selectively repeated.

Pooled Wilson 95% intervals: 14.2–40.2% for ReWiND and 42.2–71.5% for RoboLongR. These trials evaluate a fixed four-task mixture; per-task statistical significance is not established.

Explore rewards on real executions

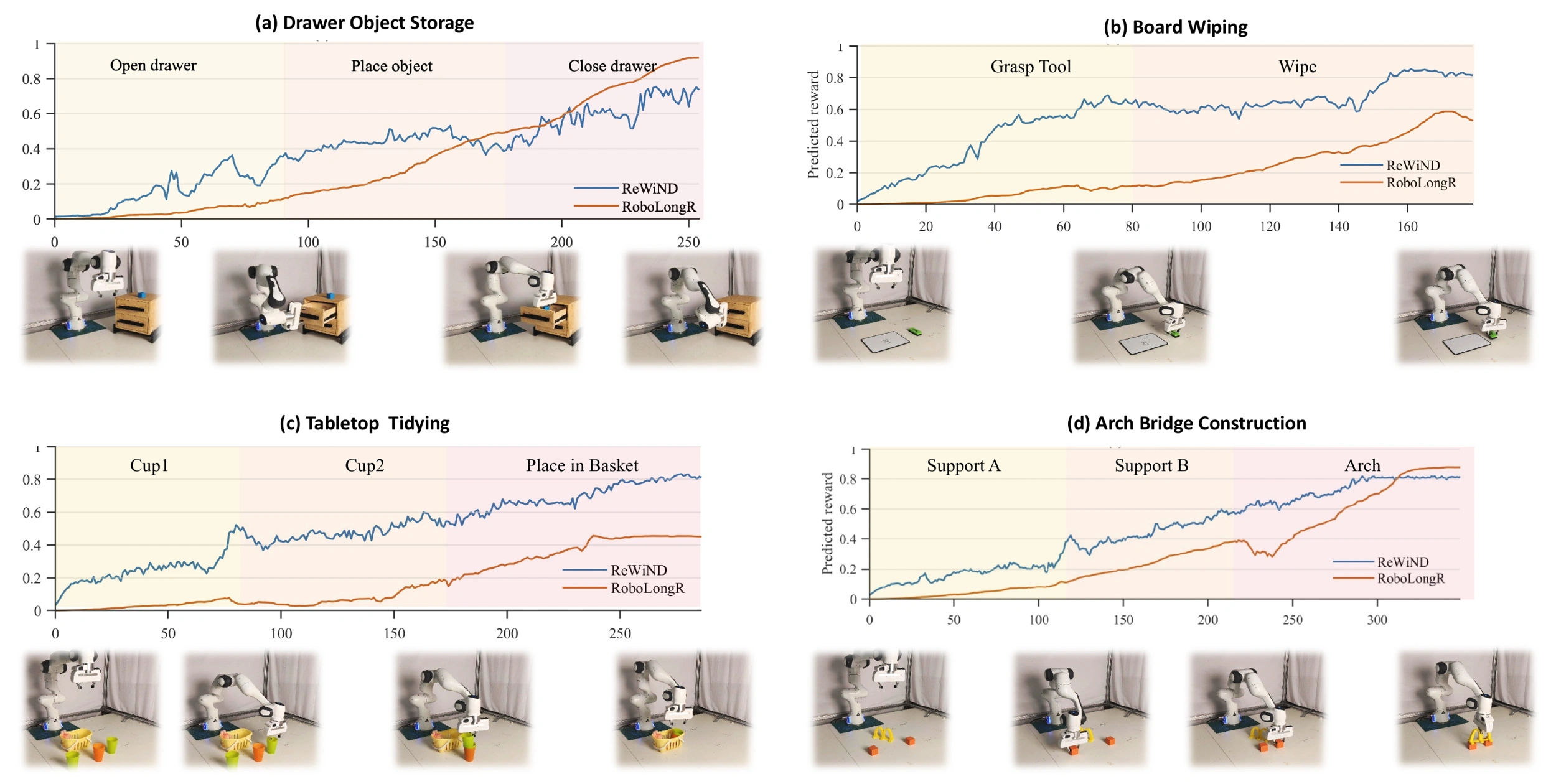

Reward curves and real camera observations across four valid task executions. — Representative valid executions. Both models track progress, with different raw score scales.

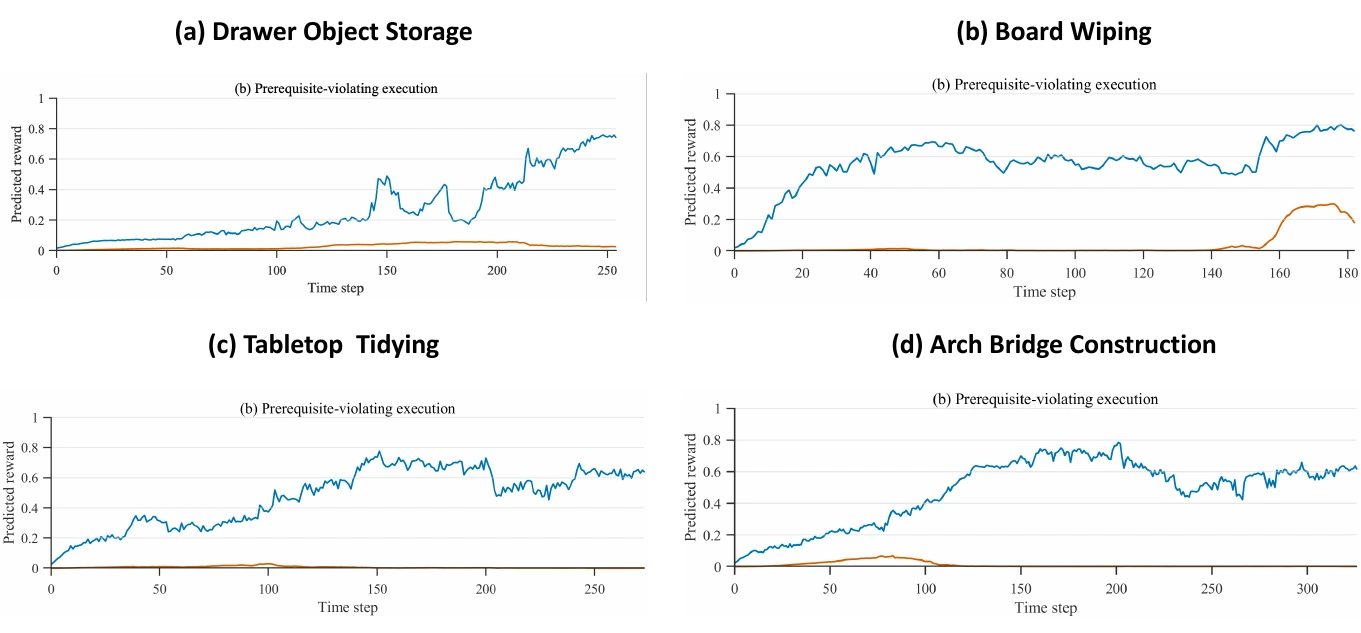

ReWiND and RoboLongR reward curves on failed executions of four real-robot tasks containing prerequisite violations. — Held-out failed executions containing prerequisite violations. Compare with valid executions above within each model. These qualitative examples do not cover all valid orders or recoveries, or isolate stage-shuffle from other components.

05 / PAPER & RESOURCES

Explore the task split.

88 pretraining tasks. 18 evaluation tasks.
A transparent separation of training and evaluation.

↗Research paperRead PDF ↗

REWARD PRETRAINING

88 pretraining tasks

Successful demonstrations provide the foundation for reward learning.

1,760 demonstrations

Search tasks

88 of 88 tasks

88 RLBench reward-pretraining tasks and descriptions
No.	Task	Description
01	Basketball In Hoop	Shoot the ball through the net
02	Beat the Buzz	Slide the ring along the pole without contact
03	Change Channel	Point the remote and change the channel
04	Change Clock	Adjust the needles to the target time
05	Close Box	Close the lid on the box
06	Close Door	Grip the handle and pull the door shut
07	Close Drawer	Slide the specified drawer shut
08	Close Fridge	Shut the fridge door
09	Close Grill	Lower the grill cover by its handle
10	Close Jar	Screw the lid onto the specified jar
11	Close Laptop Lid	Shut the laptop lid
12	Close Microwave	Close the microwave door
13	Get Ice From Fridge	Fill the cup with ice from the fridge
14	Hang Frame On Hanger	Hang the picture frame on the hanger
15	Hit Ball With Queue	Pot the ball into the goal with the cue
16	Hockey	Push the ball into the goal with the stick
17	Insert Onto Square Peg	Slide the ring onto the specified spoke
18	Insert Usb In Computer	Slide the USB stick into the slot
19	Lamp Off	Press the switch to turn the lamp off
20	Lamp On	Press the switch to turn the lamp on
21	Lift Numbered Block	Lift the block with the target number
22	Light Bulb In	Screw the bulb from its holder into the lamp
23	Light Bulb Out	Unscrew the bulb and leave it in the stand
24	Meat Off Grill	Take the specified meat off the grill
25	Meat On Grill	Put the specified meat on the grill
26	Move Hanger	Move the hanger to the other rack
27	Open Box	Open the box lid
28	Open Door	Grip the handle and push the door open
29	Open Drawer	Pull the specified drawer open
30	Open Fridge	Slide the fridge door open
31	Open Grill	Raise the grill cover by its handle
32	Open Jar	Unscrew the lid off the specified jar
33	Open Microwave	Pull the microwave door open
34	Open Oven	Pull the oven door open by its handle
35	Open Washing Machine	Pull the washing machine door open
36	Open Window	Unlock the handle and push the window open
37	Open Wine Bottle	Unscrew and remove the bottle cap
38	Phone On Base	Put the handset back on its base
39	Pick And Lift	Lift the specified block to the target
40	Pick And Lift Small	Lift the specified small object to the target
41	Pick Up Cup	Grasp and lift the specified cup
42	Place Hanger On Rack	Place the clothes hanger on the rack
43	Place Shape In Shape Sorter	Put the shape into its matching slot
44	Play Jenga	Remove the protruding block without toppling
45	Plug Charger In Power Supply	Plug the charger into the mains
46	Pour From Cup To Cup	Pour one cup's contents into the other
47	Press Switch	Flick the switch
48	Push Button	Push down the specified button
49	Push Buttons	Push the buttons in the specified order
50	Put Bottle In Fridge	Open the fridge and put the bottle in
51	Put Groceries In Cupboard	Put the specified item in the cupboard
52	Put Knife In Knife Block	Slide the knife into its slot in the block
53	Put Knife On Chopping Board	Move the knife from block to chopping board
54	Put Money In Safe	Put the money on the specified safe shelf
55	Put Plate In Colored Dish Rack	Leave the plate between the specified spokes
56	Put Rubbish In Bin	Drop the rubbish into the bin
57	Put Toilet Roll On Stand	Slide the toilet roll onto its stand
58	Put Tray In Oven	Open the oven and slide the tray in
59	Put Umbrella In Umbrella Stand	Place the umbrella into its stand
60	Reach And Drag	Drag the cube onto the target with the stick
61	Reach Target	Touch the specified sphere with the gripper
62	Remove Cups	Take one cup off the holder onto the table
63	Scoop With Spatula	Scoop the cube up with the spatula and lift
64	Screw Nail	Screw in the nail with the screwdriver
65	Slide Block To Target	Push the block onto the target
66	Slide Cabinet Open	Slide the specified cabinet half open
67	Stack Wine	Slide the bottle onto the wine rack
68	Straighten Rope	Pull each rope end until it is straight
69	Sweep To Dustpan	Brush the dirt into the dustpan
70	Take Cup Out From Cabinet	Open the cabinet and retrieve the cup
71	Take Frame Off Hanger	Slide the photo off the hanger onto the table
72	Take Item Out Of Drawer	Open the drawer and take the cube out
73	Take Lid Off Saucepan	Lift the lid off the saucepan by its handle
74	Take Money Out Safe	Take the money off the shelf onto the table
75	Take Off Weighing Scales	Remove the pepper from the scales
76	Take Plate Off Colored Dish Rack	Remove the plate from the specified spokes
77	Take Shoes Out Of Box	Open the box and put the shoes on the table
78	Take Toilet Roll Off Stand	Slide the roll off its stand onto the table
79	Take Tray Out Of Oven	Open the oven and take the tray out
80	Take Umbrella Out Of Umbrella Stand	Lift the umbrella out of its stand
81	Take Usb Out Of Computer	Remove the USB stick from its port
82	Toilet Seat Down	Close the toilet seat by its lid
83	Toilet Seat Up	Lift the toilet seat upright
84	Turn Oven On	Rotate the leftmost knob to turn the oven on
85	Turn Tap	Grasp and turn the specified tap handle
86	Tv On	Point the remote and turn the television on
87	Unplug Charger	Pull the charger out of its socket
88	Weighing Scales	Put the specified pepper on the scales

20 successful demonstrations per task. Scroll within the table to explore the complete list.

DOWNSTREAM EVALUATION

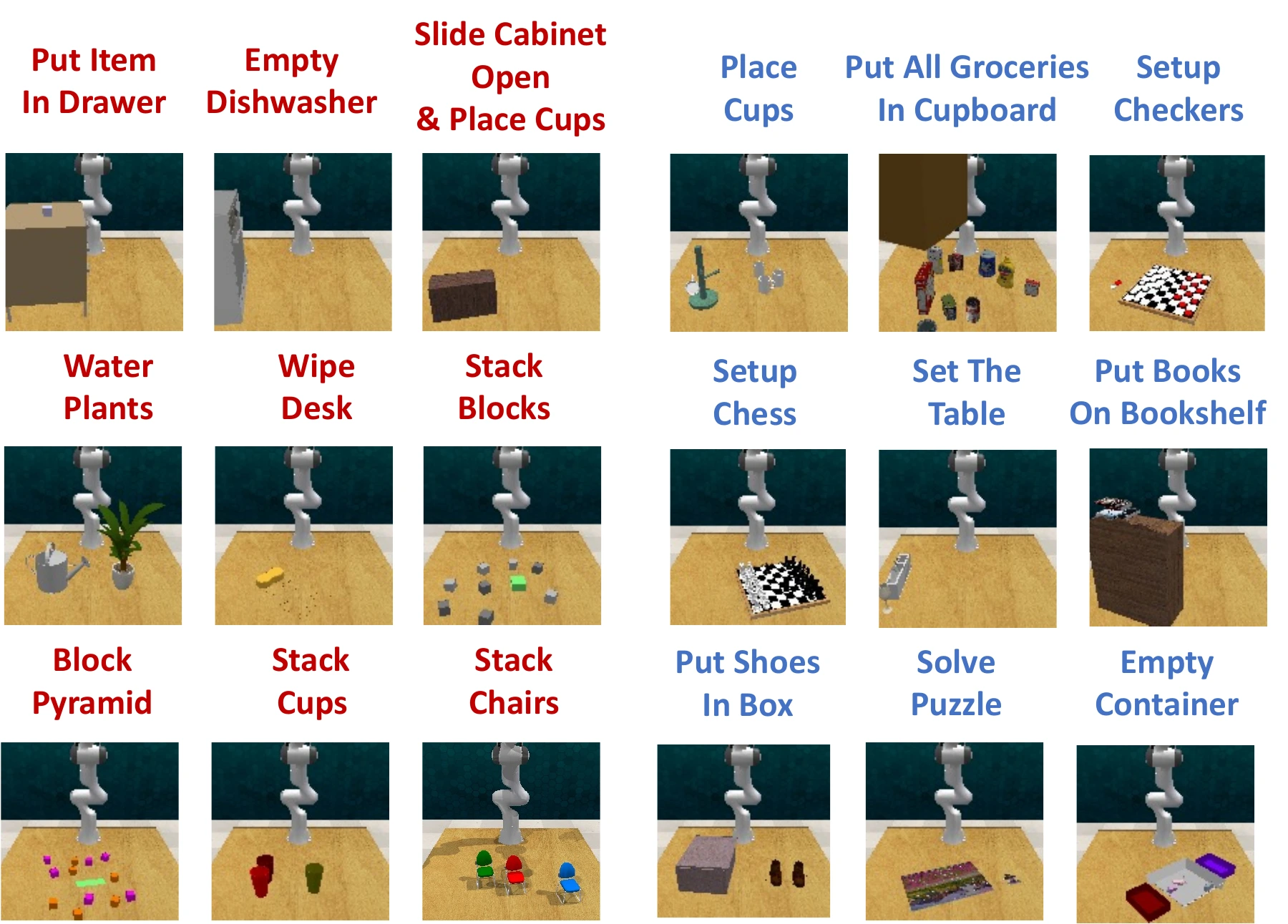

18 evaluation tasks

Excluded from reward pretraining. Grouped by the prominence of physical prerequisites.

9 strong · 9 weak

Strong dependency

Prominent physical prerequisites9 tasks

Strong dependency evaluation tasks, prerequisites, and valid alternative orders
Task	Prerequisite structure	Valid alternative orders
Put Item In Drawer	Open drawer → Place item → Close drawer	None across the three subtasks
Empty Dishwasher	Open door → Pull out rack → Remove plate	None
Slide Cabinet Open & Place Cups	Open cabinet → Place cups	Cup order, when several cups are used
Water Plants	Grasp can → Approach plant → Pour	None
Wipe Desk	Grasp sponge → Contact desk → Remove dirt	Order among independent dirt patches
Block Pyramid	Bottom layer → Middle layer → Top layer	Placements within one layer
Stack Blocks	Lower block → Block supported by it	Orders preserving all support relations
Stack Cups	Support cup → Cup placed above it	Orders preserving all support relations
Stack Chairs	Support chair → Chair placed above it	Orders preserving all support relations

Weak dependency

More flexible object order9 tasks

Weak dependency evaluation tasks, prerequisites, and valid alternative orders
Task	Prerequisite structure	Valid alternative orders
Place Cups	Independent placement for each cup	Any cup order
Put All Groceries In Cupboard	Independent placement for each item	Any item order
Setup Checkers	Independent placement for each checker	Any checker order
Setup Chess	Independent placement for each piece	Any piece order
Set The Table	Independent placement for each tableware item	Any tableware order
Put Books On Bookshelf	Independent placement for each book	Any book order
Put Shoes In Box	Open lid → Place either shoe	Either shoe order
Solve Puzzle	Independent insertion for each puzzle piece	Any piece order
Empty Container	Independent transfer for each object	Any object order

Arrows indicate prerequisite order. Both groups can admit partial orders; this grouping does not imply a single valid sequence for every task.

REAL-ROBOT EVALUATION

What counts as success?

Complete-task criteria for each of the four real-robot tasks.

4 tasks

Four real-robot tasks, prerequisite structure, and success criteria
Task	Prerequisite structure	Success criterion
Tabletop Tidying	Stack three cups → Place the completed stack into the basket	All three cups form a stable stack and the complete stack is inside the basket
Drawer Object Storage	Open drawer → Place object → Close drawer	Object is inside and drawer is fully closed
Arch Bridge Construction	Place both supports → Place arch	Supports remain upright and arch rests on them without toppling
Board Wiping	Retrieve tool → Wipe marked region	Marked region is clean and tool is released

Training and evaluation protocol

The pretraining set provides 20 successful demonstrations per RLBench task, totaling 1,760 trajectories. An additional 4,000 trajectories from the bridge and fractal20220817 subsets of Open-X supply progress supervision and rewound negatives, accounting for 25% of each base batch. Each of the 18 evaluation tasks provides 20 demonstrations for coarse stage annotation and behavior-cloning initialization. Offline progress scores are diagnostic only. Online PPO queries rewards on execution histories, and terminal feedback supports reward correction.

The task lists reproduce the manuscript’s task names and descriptions. They are descriptive resources, not a release of trajectory data or benchmark implementation.
